Impact Windows
Residential Impact Window Product Selection & Installation

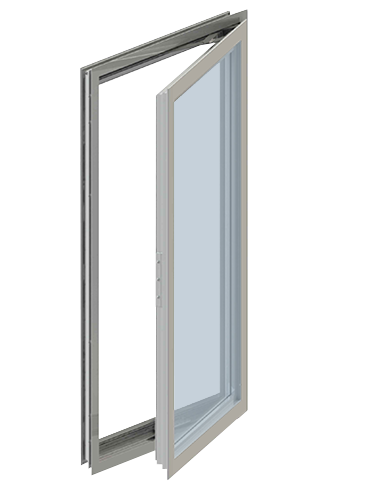

Elite Casement Window
ES-5000
The ES-5000 is a 2 1/8″ impact-rated casement window featuring a rotating handle for an effortless operation. It is available in multiple glazing options providing flexibility in design.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact
- Frame depth: 2 1/8″
- Configurations: X, XX
- Designed for laminated and insulating glass
- Tested water infiltration: 13.5 psf
- Tested design load: +90/-90 psf
- Maximum size:
- 37″ width x 74 1/4″ height
- 74″ width x 74 1/4″ height
- U-value:
- 70 – IGU (5/32″ SB70 Clear + AS + 1/8″ Clear + 0.090 PVB + 5/32″ Clear)
- Insulating laminated glass:
- 5/32″ + 1/4″ AS + 1/8″ + 0.090 Interlayer + 5/32″
- Laminated glass:
- 1/8″ + 0.090 Interlayer + 1/8″
- 5/32″ + 0.090 Interlayer + 1/8″
- SHGC: 0.22 on clear insulating laminated SB 70
- Single arm operator and multi-point lock
- Heavy duty stainless steel four-bar hinge
- Flange frame for masonry and wood construction or flush frame for concrete openings
- Screens available in aluminum frame and fiberglass mesh
- Surface applied OG or flat muntins
- Folding crank handle

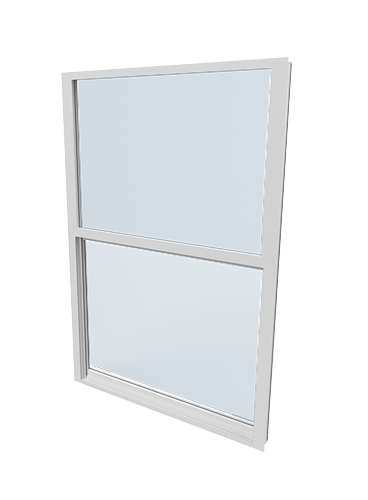

Elite Single-Hung Window
ES-EL100
The ES-EL100 is a single-hung, impact-rated window that easily adapts to any design specification, satisfying the most demanding construction and architectural standards for security, strength and durability. The ES-EL100 is designed for narrow openings to resist high pressures. Single-hung systems are known for its excellent water intrusion performance.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Frame depth: 2 15/16″
- Configuration: O/X
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf LMI
- Maximum size: 53 1/8″ width x 76″ height
- U-value:
- 64 – IGU (1/8″ SB70 Clear + AS + 1/8″ Clear + 0.090 PVB + 1/8″ Clear)
- 96 – LG (1/8″ Clear + 0.090 PVB + 1/8″ Clear)
- Insulating laminated glass:
- 1/8″+ 3/8″ AS + 1/8″ + 0.090 Interlayer + 1/8″
- 1/8″ + 5/16″ AS + 1/8″ + 0.090 Interlayer + 1/4″
- Laminated glass:
- 1/8″ + 0.090 Interlayer + 1/8″
- 1/8″+ 0.090 Interlayer + 1/4″
- Egress size:
- Configurations for egress requirement available
- SHGC:
- 23 on clear insulating laminated SB 70
- Standard sill and 4″ sash window stop
- Block and tackle or ultra-lift balances
- Bottom spring latch or sweep lock
- Flange frame for masonry, fin frame for wood construction or flush frame for concrete opening
- No sill installation screws required
- Saflex PVB, Kuraray PVB, Vanceva Storm
- SentryGlas Plus interlayer options

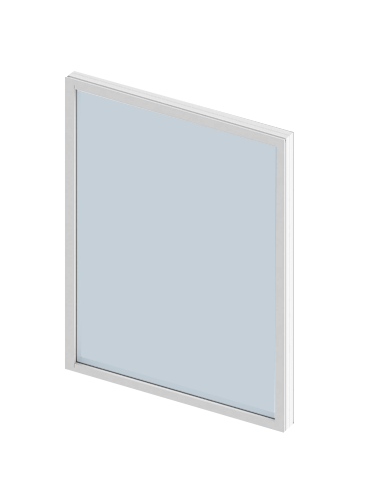

Elite Fixed Window
ES-EL150
The ES-EL150 is a fixed window available in a variety of shapes, allowing a wide range of applications. This window is used to bring light to places with difficult accessibility.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Frame depth: 2 15/16″
- Designed for laminated and insulating glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf
- Maximum size: 60″ width x 108″ height
- U-value:
- 51 – IGU (1/8″ SB70 + AS + 1/8″ Clear + 0.090 PVB + 1/4″ Clear)
- – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- Insulating laminated glass:
- 1/8″ + 5/16″ AS + 1/8″ + 0.090 Interlayer + 1/4″
- 5/32″ + 5/16″ AS + 5/32″ + 0.090 Interlayer + 5/32″
- Laminated glass:
- 1/8″ + 0.090 Interlayer + 1/4″
- 3/16″ + 0.090 Interlayer + 3/16″
- SHGC:
- 26 on clear insulating laminated SB 70
- Flange frame for masonry, fin frame for wood construction or flush frame for concrete openings
- Architectural shapes available
- Minimum radius: 14″
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options

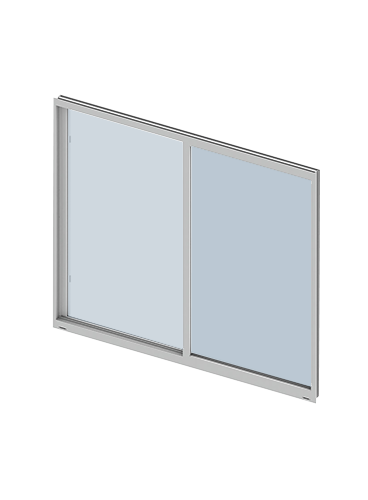

Elite Sliding Window
ES-EL200
The ES-EL200 is a horizontal roller sliding window. This product ensures an easy and smooth opening allowing maximum ventilation. ES-EL200 can be used on a wide variety of applications.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Frame depth: 2 15/16″
- Configurations: XO, OX or XOX
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 10 psf
- Tested design load: +80/-90 psf
- Maximum size:
- 72 15/16″ width x 62″ height (2 panel)
- 110″ width x 62″ height (3 panel)
- U-value:
- 62 – IGU (1/8″ SB70 + AS + 1/8″ Clear + 0.090 PVB + 1/8″ Clear)
- LG (1/8″ Clear + 0.090 PVB + 1/8″ Clear)
- Insulating laminated glass:
- 1/8″+ 3/8″ AS + 1/8″ + 0.090 Interlayer + 1/8″
- 1/8″ + 5/16″ AS + 1/8″ + 0.090 Interlayer + 1/4″
- Laminated glass:
- 1/8″ + 0.090 Interlayer + 1/8″
- 1/8″ + 0.090 Interlayer + 1/4″
- Egress size:
- Configurations for egress requirement available
- SHGC:
- 24 on clear insulating laminated SB 70
- Polyamide rollers with needle bearings
- Spring latch at jamb or sweep lock options
- Flange or fin frame for masonry and wood construction, flush frame for concrete openings
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options

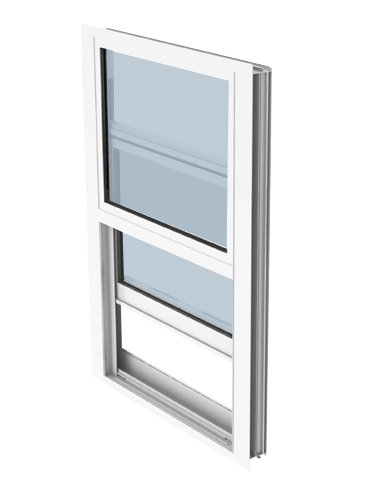

Multimax Single-Hung Window
ES-MX1000
The ES-MX1000 is a single hung window that can be adapted to any architectural design. The system follows strict construction specifications and architectural standards of safety and durability. This window system can be implemented in residential and commercial construction projects.
Frame Colors Available
Glass Tint Colors Available
- Maximum width (Equal): 53 1/8” width x 63” height
- Maximum height (Equal): 74 1/4” height x 42” width
- Maximum width (Unequal): 53 1/8” width x 50 5/8” height
- Maximum height (Unequal): 74 1/4” height x 26 1/2” width
- Frame depth: 2 3/8”
- Flange frame available
- Designed for 5/16” annealed and heat strengthened glass options
- LMI and SMI
- Configuration: OX
- Tested water infiltration: 12 psf.
- Tested design load:
- +80/-90 psf. (LMI)
- +80/-120 psf. (SMI)
- Laminated glass:
- 1/8” ANN + 0.09 PVB + 1/8” ANN
- 1/8” HS + 0.09 PVB + 1/8” HS
- Hurricane resistant
- U-value: 1.04 on clear laminated SB 70
- SHGC: 0.29 on clear laminated SB 70
- Low-E Solarban 70 available
- Screen option available
- Block and tackle and ultra-lift balance options
- White and bronze aluminum finishes
- Sweep lock and vent latch handles available
- Heavy-duty meeting rail available

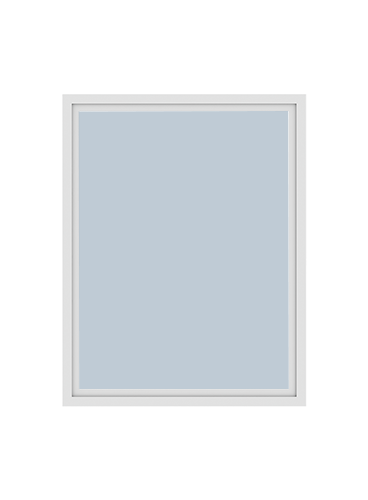

Multimax Fixed Window
ES-MX1500
ES-MX1500 is an impact-rated fixed window available in a variety of shapes allowing a wide range of architectural applications. This window is used to bring light to places with difficult accessibility.
Frame Colors Available
Glass Tint Colors Available
- Maximum size: 36” width x 120” height
- Frame depth: 2 3/8”
- Flange frame available
- Designed for 5/16” annealed glass and 7/16” heat strengthened glass options
- LMI and SMI
- Tested water infiltration: 15 psf.
- Tested design load:
- +70/-80 psf. (LMI)
- +100/-140 psf. (SMI)
- Laminated glass:
- 1/8” ANN + 0.09 PVB + 1/8” ANN
- 3/16” HS + 0.09 PVB + 3/16” HS
- Hurricane resistant
- U-value: 1.01 on clear laminated SB 70
- SHGC: 0.31 on clear laminated SB 70
- Low-E Solarban 70 available
- White and bronze aluminum finishes
- PVB laminated glass with coating options available
- Architectural shapes
Multimax Sliding Window
ES-MX2000
The ES-MX1000 is a single hung window that can be adapted to any architectural design. The system follows strict construction specifications and architectural standards of safety and durability. This window system can be implemented in residential and commercial construction projects.
Frame Colors Available
Glass Tint Colors Available
- Maximum width (Equal): 53 1/8” width x 63” height
- Maximum height (Equal): 74 1/4” height x 42” width
- Maximum width (Unequal): 53 1/8” width x 50 5/8” height
- Maximum height (Unequal): 74 1/4” height x 26 1/2” width
- Frame depth: 2 3/8”
- Flange frame available
- Designed for 5/16” annealed and heat strengthened glass options
- LMI and SMI
- Configuration: OX
- Tested water infiltration: 12 psf.
- Tested design load:
- +80/-90 psf. (LMI)
- +80/-120 psf. (SMI)
- Laminated glass:
- 1/8” ANN + 0.09 PVB + 1/8” ANN
- 1/8” HS + 0.09 PVB + 1/8” HS
- Hurricane resistant
- U-value: 1.04 on clear laminated SB 70
- SHGC: 0.29 on clear laminated SB 70
- Low-E Solarban 70 available
- Screen option available
- Block and tackle and ultra-lift balance options
- White and bronze aluminum finishes
- Sweep lock and vent latch handles available
- Heavy-duty meeting rail available

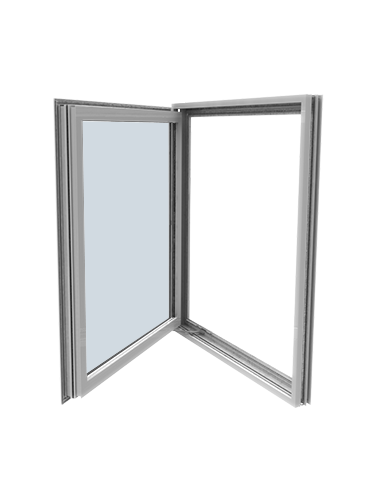

Prestige Casement Window
ES-P252
ES-P252 is an operable out-swing window that offers an unobstructed view and excellent ventilation. This product is ideal for areas that demand high light transmittance and minimal thermal transfer.
Glass Tint Colors Available
Glass Tint Colors Available
- Casement
- Small and large missile impact rated
- Maximum size: 48” width x 84” height
- Frame depth: 2 1/2”
- Tested water infiltration: 17.1 psf.
- Tested design load:
- +95/-105 psf. (SMI)
- +95/-105 psf. (LMI)
Prestige Casement Window
ES-P300
The ES-P300 window was designed to get a historic look with its beveled frame while improving the energy efficiency of buildings, maintaining the capability to resist hurricane impacts.
Frame Colors Available
Glass Tint Colors Available
- Small and large missile impact rated.
- Tested panel width up to: 60″.
- Tested panel height up to: 96″.
- Designed for 1″ insulated and 1 – 3/16″ insulated laminated glass.
- Fully thermally broken
- Multi point locking and roto-operator system option.
- Lever handle option.
- Interior trim or receptor installation.
- Retrofit design look.
- Flag option available
Impact Windows
Residential Impact Window Product Selection & Installation
Elite Casement Window
ES-5000
The ES-5000 is a 2 1/8″ impact-rated casement window featuring a rotating handle for an effortless operation. It is available in multiple glazing options providing flexibility in design.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact
- Frame depth: 2 1/8″
- Configurations: X, XX
- Designed for laminated and insulating glass
- Tested water infiltration: 13.5 psf
- Tested design load: +90/-90 psf
- Maximum size:
- 37″ width x 74 1/4″ height
- 74″ width x 74 1/4″ height
- U-value:
- 70 – IGU (5/32″ SB70 Clear + AS + 1/8″ Clear + 0.090 PVB + 5/32″ Clear)
- Insulating laminated glass:
- 5/32″ + 1/4″ AS + 1/8″ + 0.090 Interlayer + 5/32″
- Laminated glass:
- 1/8″ + 0.090 Interlayer + 1/8″
- 5/32″ + 0.090 Interlayer + 1/8″
- SHGC: 0.22 on clear insulating laminated SB 70
- Single arm operator and multi-point lock
- Heavy duty stainless steel four-bar hinge
- Flange frame for masonry and wood construction or flush frame for concrete openings
- Screens available in aluminum frame and fiberglass mesh
- Surface applied OG or flat muntins
- Folding crank handle
Elite Single-Hung Window
ES-EL100
The ES-EL100 is a single-hung, impact-rated window that easily adapts to any design specification, satisfying the most demanding construction and architectural standards for security, strength and durability. The ES-EL100 is designed for narrow openings to resist high pressures. Single-hung systems are known for its excellent water intrusion performance.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Frame depth: 2 15/16″
- Configuration: O/X
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf LMI
- Maximum size: 53 1/8″ width x 76″ height
- U-value:
- 64 – IGU (1/8″ SB70 Clear + AS + 1/8″ Clear + 0.090 PVB + 1/8″ Clear)
- 96 – LG (1/8″ Clear + 0.090 PVB + 1/8″ Clear)
- Insulating laminated glass:
- 1/8″+ 3/8″ AS + 1/8″ + 0.090 Interlayer + 1/8″
- 1/8″ + 5/16″ AS + 1/8″ + 0.090 Interlayer + 1/4″
- Laminated glass:
- 1/8″ + 0.090 Interlayer + 1/8″
- 1/8″+ 0.090 Interlayer + 1/4″
- Egress size:
- Configurations for egress requirement available
- SHGC:
- 23 on clear insulating laminated SB 70
- Standard sill and 4″ sash window stop
- Block and tackle or ultra-lift balances
- Bottom spring latch or sweep lock
- Flange frame for masonry, fin frame for wood construction or flush frame for concrete opening
- No sill installation screws required
- Saflex PVB, Kuraray PVB, Vanceva Storm
- SentryGlas Plus interlayer options
Elite Fixed Window
ES-EL150
The ES-EL150 is a fixed window available in a variety of shapes, allowing a wide range of applications. This window is used to bring light to places with difficult accessibility.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Frame depth: 2 15/16″
- Designed for laminated and insulating glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf
- Maximum size: 60″ width x 108″ height
- U-value:
- 51 – IGU (1/8″ SB70 + AS + 1/8″ Clear + 0.090 PVB + 1/4″ Clear)
- – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- Insulating laminated glass:
- 1/8″ + 5/16″ AS + 1/8″ + 0.090 Interlayer + 1/4″
- 5/32″ + 5/16″ AS + 5/32″ + 0.090 Interlayer + 5/32″
- Laminated glass:
- 1/8″ + 0.090 Interlayer + 1/4″
- 3/16″ + 0.090 Interlayer + 3/16″
- SHGC:
- 26 on clear insulating laminated SB 70
- Flange frame for masonry, fin frame for wood construction or flush frame for concrete openings
- Architectural shapes available
- Minimum radius: 14″
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
Elite Sliding Window
ES-EL200
The ES-EL200 is a horizontal roller sliding window. This product ensures an easy and smooth opening allowing maximum ventilation. ES-EL200 can be used on a wide variety of applications.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Frame depth: 2 15/16″
- Configurations: XO, OX or XOX
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 10 psf
- Tested design load: +80/-90 psf
- Maximum size:
- 72 15/16″ width x 62″ height (2 panel)
- 110″ width x 62″ height (3 panel)
- U-value:
- 62 – IGU (1/8″ SB70 + AS + 1/8″ Clear + 0.090 PVB + 1/8″ Clear)
- LG (1/8″ Clear + 0.090 PVB + 1/8″ Clear)
- Insulating laminated glass:
- 1/8″+ 3/8″ AS + 1/8″ + 0.090 Interlayer + 1/8″
- 1/8″ + 5/16″ AS + 1/8″ + 0.090 Interlayer + 1/4″
- Laminated glass:
- 1/8″ + 0.090 Interlayer + 1/8″
- 1/8″ + 0.090 Interlayer + 1/4″
- Egress size:
- Configurations for egress requirement available
- SHGC:
- 24 on clear insulating laminated SB 70
- Polyamide rollers with needle bearings
- Spring latch at jamb or sweep lock options
- Flange or fin frame for masonry and wood construction, flush frame for concrete openings
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
Multimax Single-Hung Window
ES-MX1000
The ES-MX1000 is a single hung window that can be adapted to any architectural design. The system follows strict construction specifications and architectural standards of safety and durability. This window system can be implemented in residential and commercial construction projects.
Frame Colors Available
Glass Tint Colors Available
- Maximum width (Equal): 53 1/8” width x 63” height
- Maximum height (Equal): 74 1/4” height x 42” width
- Maximum width (Unequal): 53 1/8” width x 50 5/8” height
- Maximum height (Unequal): 74 1/4” height x 26 1/2” width
- Frame depth: 2 3/8”
- Flange frame available
- Designed for 5/16” annealed and heat strengthened glass options
- LMI and SMI
- Configuration: OX
- Tested water infiltration: 12 psf.
- Tested design load:
- +80/-90 psf. (LMI)
- +80/-120 psf. (SMI)
- Laminated glass:
- 1/8” ANN + 0.09 PVB + 1/8” ANN
- 1/8” HS + 0.09 PVB + 1/8” HS
- Hurricane resistant
- U-value: 1.04 on clear laminated SB 70
- SHGC: 0.29 on clear laminated SB 70
- Low-E Solarban 70 available
- Screen option available
- Block and tackle and ultra-lift balance options
- White and bronze aluminum finishes
- Sweep lock and vent latch handles available
- Heavy-duty meeting rail available
Multimax Fixed Window
ES-MX1500
ES-MX1500 is an impact-rated fixed window available in a variety of shapes allowing a wide range of architectural applications. This window is used to bring light to places with difficult accessibility.
Frame Colors Available
Glass Tint Colors Available
- Maximum size: 36” width x 120” height
- Frame depth: 2 3/8”
- Flange frame available
- Designed for 5/16” annealed glass and 7/16” heat strengthened glass options
- LMI and SMI
- Tested water infiltration: 15 psf.
- Tested design load:
- +70/-80 psf. (LMI)
- +100/-140 psf. (SMI)
- Laminated glass:
- 1/8” ANN + 0.09 PVB + 1/8” ANN
- 3/16” HS + 0.09 PVB + 3/16” HS
- Hurricane resistant
- U-value: 1.01 on clear laminated SB 70
- SHGC: 0.31 on clear laminated SB 70
- Low-E Solarban 70 available
- White and bronze aluminum finishes
- PVB laminated glass with coating options available
- Architectural shapes
Multimax Sliding Window
ES-MX2000
The ES-MX1000 is a single hung window that can be adapted to any architectural design. The system follows strict construction specifications and architectural standards of safety and durability. This window system can be implemented in residential and commercial construction projects.
Frame Colors Available
Glass Tint Colors Available
- Maximum width (Equal): 53 1/8” width x 63” height
- Maximum height (Equal): 74 1/4” height x 42” width
- Maximum width (Unequal): 53 1/8” width x 50 5/8” height
- Maximum height (Unequal): 74 1/4” height x 26 1/2” width
- Frame depth: 2 3/8”
- Flange frame available
- Designed for 5/16” annealed and heat strengthened glass options
- LMI and SMI
- Configuration: OX
- Tested water infiltration: 12 psf.
- Tested design load:
- +80/-90 psf. (LMI)
- +80/-120 psf. (SMI)
- Laminated glass:
- 1/8” ANN + 0.09 PVB + 1/8” ANN
- 1/8” HS + 0.09 PVB + 1/8” HS
- Hurricane resistant
- U-value: 1.04 on clear laminated SB 70
- SHGC: 0.29 on clear laminated SB 70
- Low-E Solarban 70 available
- Screen option available
- Block and tackle and ultra-lift balance options
- White and bronze aluminum finishes
- Sweep lock and vent latch handles available
- Heavy-duty meeting rail available
Prestige Casement Window
ES-P252
ES-P252 is an operable out-swing window that offers an unobstructed view and excellent ventilation. This product is ideal for areas that demand high light transmittance and minimal thermal transfer.
Glass Tint Colors Available
Glass Tint Colors Available
- Casement
- Small and large missile impact rated
- Maximum size: 48” width x 84” height
- Frame depth: 2 1/2”
- Tested water infiltration: 17.1 psf.
- Tested design load:
- +95/-105 psf. (SMI)
- +95/-105 psf. (LMI)
Prestige Casement Window
ES-P300
The ES-P300 window was designed to get a historic look with its beveled frame while improving the energy efficiency of buildings, maintaining the capability to resist hurricane impacts.
Frame Colors Available
Glass Tint Colors Available
- Small and large missile impact rated.
- Tested panel width up to: 60″.
- Tested panel height up to: 96″.
- Designed for 1″ insulated and 1 – 3/16″ insulated laminated glass.
- Fully thermally broken
- Multi point locking and roto-operator system option.
- Lever handle option.
- Interior trim or receptor installation.
- Retrofit design look.
- Flag option available
Impact Windows & Doors
FINANCING & GRANT INFORMATION AVAILABLE FOR THOSE INTERESTED
Arcia Impact Windows & Doors is approved to offer a wide range of financing options. Reach out to us to find out what options you may have to finance your project.
Impact Windows Photo Gallery

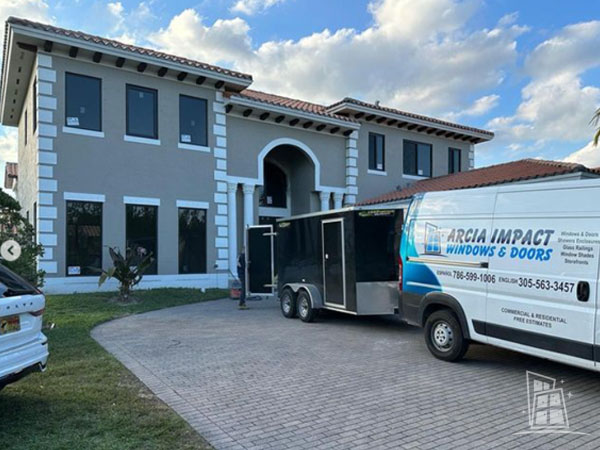

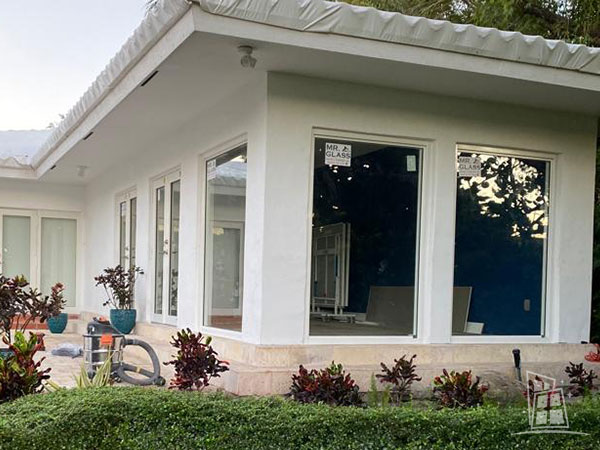

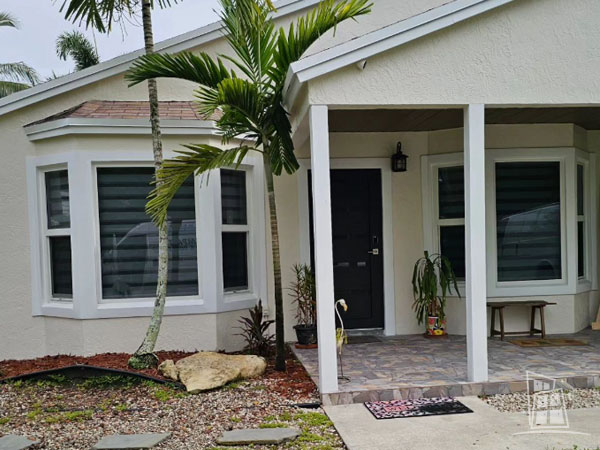

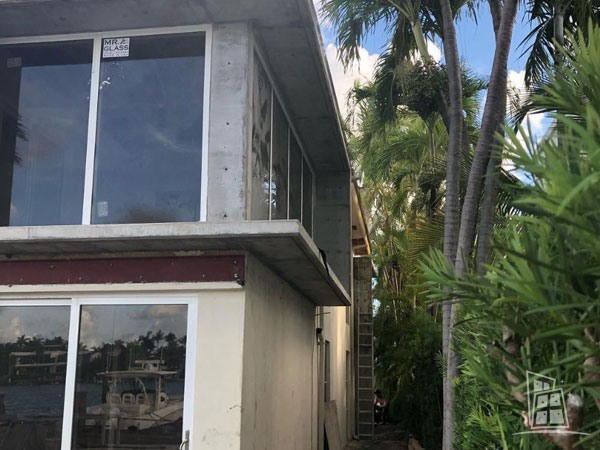

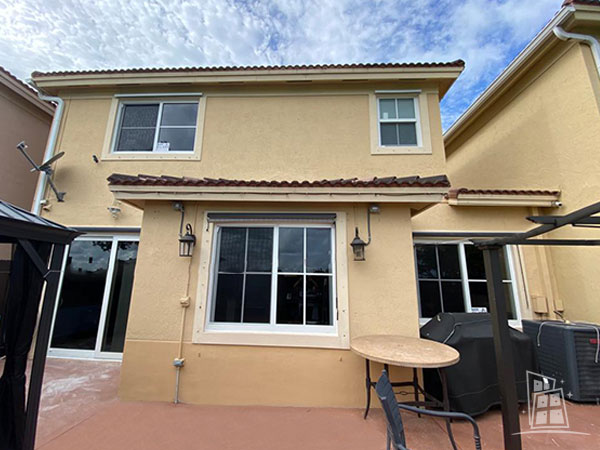

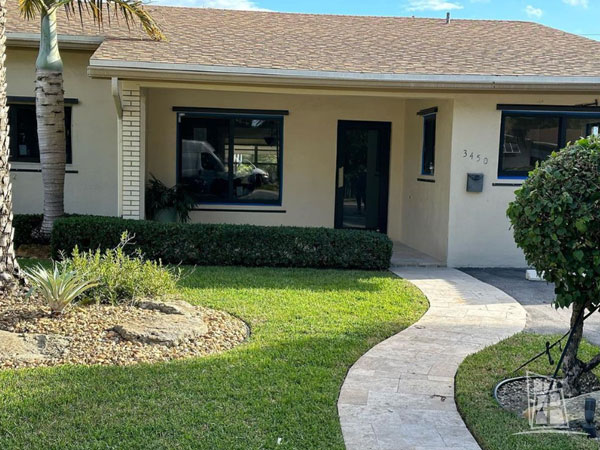

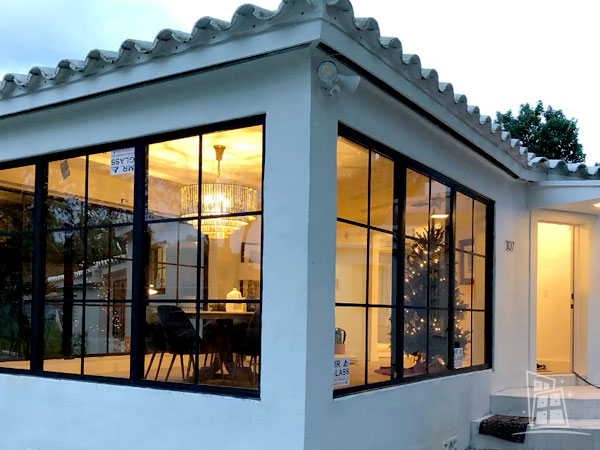

Residential Impact Window Installation Examples
TRYING TO DECIDE IF OUR COMPANY IS RIGHT FOR YOU?
Benefits of using Arcia Impact Windows & Doors
As industry leaders, Arcia Windows & Doors Inc. provides impact windows to Miami-Dade, Broward, Martin County, Monroe, Palm Beach and many other counties in the South Florida area (view complete list of locations we service here).
Our brand has been recognized for having a phenomenal track record with all our residential and business clients alike. We offer financing and home improvement grant options for those that need it, through our various industry partners and knowledge of available state programs. We have options available for every project type. Contact us today to get started!
Have Questions?
We have compiled a list of questions and answers to common questions.
Arcia Impact Windows & Doors uses Zipwall to prep all work areas so that the structure and area is secure before we start. This allows for more control of dust and debris making it safer for you and your family.
Arcia Impact Windows & Doors provides 1-year warrantee with all of their installations and our impact windows all carry manufacturers warrantee. For information on each brand please contact us at (786) 599-1006 or email us at info@arciawindows.com.
Window installations times vary depending on property structure, product availability, and the number of windows being installed. Generally, a window installation can range anywhere from one to several days depending on project size.
Yes, however, we highly recommend having the product installed through one of our professional contractors in order to avoid accidently damaging the product and voiding the warrantee.
The main difference between a regular window and an impact window is that an impact window has a thicker glass suited and tested for wind mitigation and has more impact resistance against flying objects.
No, Impact windows can withstand up to 175 mile per hour winds. They also have a higher impact resistance against flying objects.
Yes, impact windows can significantly increase a home’s value because they offer a higher level of security and wind protection.
Yes, impact windows are more resistant to heat caused by the son’s UV rays. There are also several glass options available through Arcia Impact Windows and Doors that improve heat resistance. For more information on which glass is right for you, contact us at (786) 599-1006 or email us at info@arciawindows.com.
Yes, there are various insurance companies that offer discounts on your premium for impact windows because they help protect your home against storms, brake-ins, high winds and flying debris. For more information on the amount reduction, we recommend talking to your insurance provider.
Yes, permit applications must be submitted with the association first and then with the city the property is located in.
