Impact Doors
Residential Impact Door Product Selection & Installation
Elite Swing Door

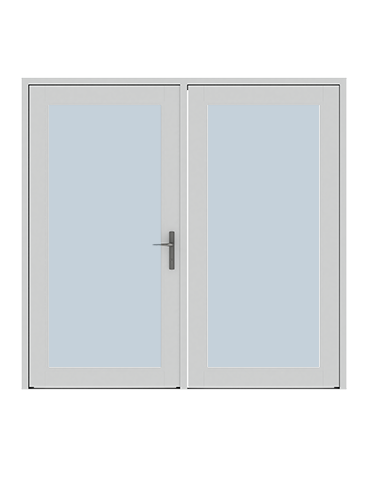

ES-EL300
The ES-EL300 is a 1 3/4” panel depth impact-rated french door available with integrated sidelites. This product is designed to meet the most stringent standards. ES-EL300 is a secure and durable door that can be used on a variety of applications, most commonly on residential condos.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Out-swing motion
- Frame depth: 4″
- Configurations: X, XX, O
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf
- Maximum size:
- X: 39 3/4″ width x 108″ height
- XX: 76″ width x 108″ height
- O/X/O: 131 1/4″ width x 108″ height
- U-value:
- 70 – IGU (3/16″ SB70 Clear + AS + 3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- 03 – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- Insulating laminated glass:
- 3/16″ + 3/8″ AS + 3/16″ + 0.090 Interlayer + 3/16″
- 1/4″ + 3/8″ AS + 1/8″ + 0.090 Interlayer + 3/16″
- Laminated glass:
- 3/16″ + 0.090 Interlayer + 3/16″
- 1/4″ + 0.090 Interlayer + 1/8″
- SHGC:
- 20 on clear insulating laminated SB 70
- Minimum width for accessibility is 72 13/16″ on a two panel door
- Door width: 38 3/16″
- Sill height: 1 1/2″
- ADA sizes: Conf. X 38 7/8″
- Wide variety of hardware options including three-point lock, heavy-duty hinges, lever handles, deadbolts, among others
- High bottom rail and high sill optional
- Self-mating sidelites
- OG muntins
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options

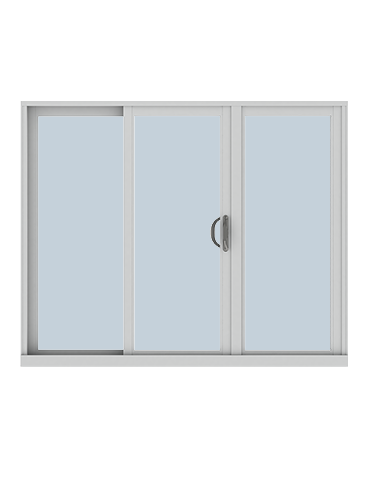

Elite Sliding Glass Door
ES-EL400
The ES-EL400 is a sliding glass door with a 4 13/16″ frame profile. This product meets the most stringent specifications, and with its attractive design and one-to-four track frame, is ideal for a wide range of applications.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Frame depth: 4 13/16″
- Configurations: XO, OX, XX, OXO, XXX, OXXO, OXXX, XXXX, XOXXOX
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf
- Maximum panel size:
- 48″ width x 120″ height
- 60″ width x 96″ height
- U-value:
- 57 – IGU (3/16″ SB70 Clear + AS + 3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- 04 – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- Insulating laminated glass:
- 3/16″ + 3/8″ AS + 3/16″ + 0.090 Interlayer + 3/16″
- Laminated glass:
- 3/16″ + 0.090 Interlayer + 3/16″
- Egress size:
- Configurations for egress requirement available
- Minimum width for accessibility:
- OX/XO: 81 5/8″
- OXO: 123 3/16″
- OXXO: 93″
- SHGC:
- 23 on clear insulating laminated SB 70
- Minimum width for accessibility is 75 5/8″ on OX/XO configuration and 81 7/8″ on XX configuration
- Adjustable tandem polyamide needle bearing rollers
- Up to 4-track frame option
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
- Pocket configuration available

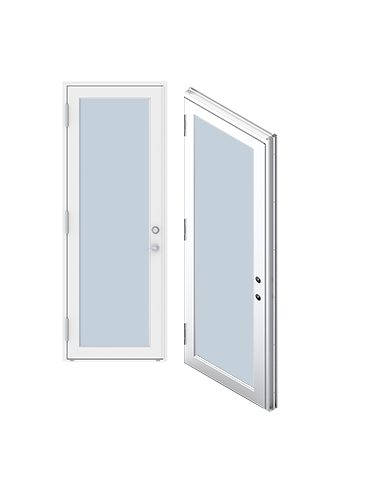

Multimax Swing Door
ES-MX3000
ES-MX3000 is an impact-rated french door designed with the highest technical standards in safety and durability. This door system can be used in a wide range of residential and commercial applications.
Frame Colors Available
Glass Tint Colors Available
- Maximum size:
- Single leaf: 40” width x 96” height
- Double leaf: 76” width x 96” height
- Frame depth: 4”
- Designed for 5/16” heat strengthened glass options
- Prepped handle bores options only
- Tested water infiltration: 13.5 psf. (single) 15 psf. (double)
- Tested design load: +80/-70 psf.
- Laminated glass:
- 1/8” HS + 0.09 PVB + 1/8” HS
- U-value: 1.04 on clear laminated SB 70
- SHGC: 0.23 on clear laminated SB 70
- Hurricane resistant
- Low-E Solarban 70 available
- White and bronze aluminum finishes
- PVB laminated glass with coating options available
Multimax Sliding Door

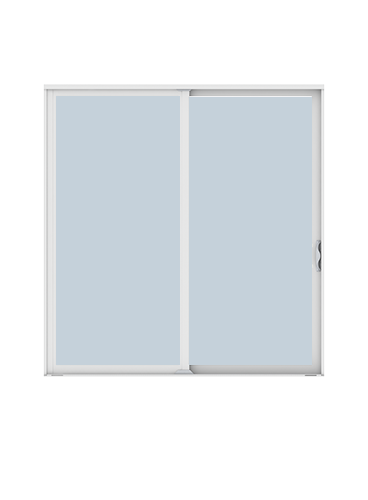

ES-MX4000
ES-MX4000 is an impact-rated sliding glass door system designed with the highest technical standards in safety and durability. This system is very versatile and can be implemented in interiors or exteriors for a wide range of residential and commercial projects.
Frame Colors Available
Glass Tint Colors Available
- Maximum panel size:
- 48” width x 108” height
- 48” width x 111” height (2 panel with reinforcements)
- Frame depth: 5 3/8”
- Sill height: 2 5/8”
- 2 track, and up to 4 panel configuration with screens
- Configurations: OX, XO, OXO, OXXO
- Tested water infiltration: 12 psf.
- Tested design load:
- +70/-80 psf.
- +80/-103 psf. (OX and XO only)
- Laminated glass:
- 3/16” HS + 0.09 PVB + 3/16” HS
- Hurricane resistant
- U-value: 1.02 on clear laminated SB 70
- SHGC: 0.30 on clear laminated SB 70
- Low-E Solarban 70 available
- Screen option available
- White and bronze aluminum finishes
- PVB laminated glass with coating options available
- Reinforcement available
Prestige Pivot/Entry Door
ES-PSD5030
Designed for captured glass, structural-silicone glazed , and multiple phenolic panel finish options.
Frame Colors Available
Glass Tint Colors Available
- System Description
- Pivot and swing door system
- Frame depth: 5″
- Maximum sizes:
- 60″ width x 144″ height
- 72″ width x 120″ height
- 90″ width x 96″ height
- Impact door
- ADA threshold
- Designed for multiple options of glass and phenolic panel
- Features
- Thermally broken system for improved performance and insulation
- Anodized, painted or wood grain finishes available
- Automatic drop-down seal to close any gap between the door and the floor/frame sill
- Damper control (soft close and wall protection)
- Hold positions at 0 ̊, 90 ̊and -90 ̊
- Modular multi-point lock with electric capability (optional)
- Multifunction die-cast aluminum corner joints
- Self-closing pivot hinge.

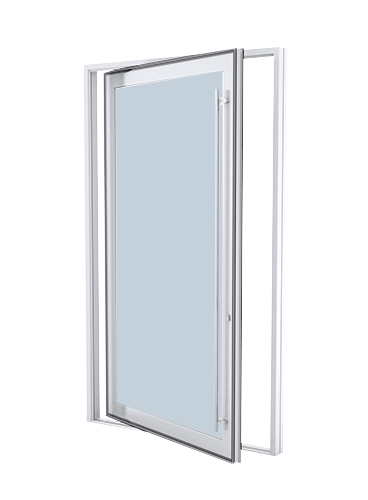

Prestige Pivot/Entry Door
ES-PSD5030T
The ES-PSD5030T is a versatile pivot and french/swing entry door system that allows multiple finish options. Designed for captured glass, ssg glass, and phenolic panel finish.
Frame Colors Available
Glass Tint Colors Available
- Pivot door system.
- Frame depth: 5″.
- Impact door.
- Trehshold ADA.
- Desing for multiple options of glass and panel phenolic.
- Thermal break system for improved performance and insulation.
- Multipoint lock.
- Available in multiple finishes, anodized, painted or with wood grain.

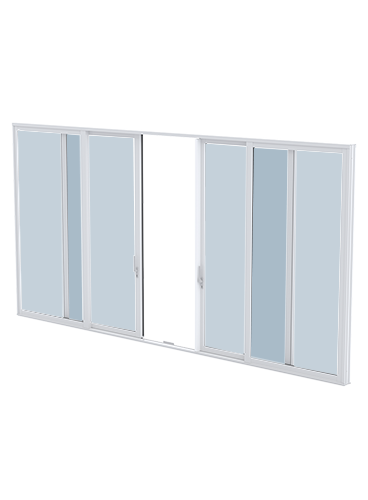

Prestige Impact Sliding Door
ES-SGD2020
The ES-SGD2020 is an impact-rated sliding glass door with minimal sightlines. This narrow door features less aluminum and more glass than others allowing a clearer view.
Frame Colors Available
Glass Tint Colors Available
- System Description
- Large missile impact rated
- Maximum panel size:
- 72” width x 120” height
- 60” width x 144” height
- Frame depth: 4 3/8” (2 track), 6 7/16” (3 track),
- 8 1/2” (4 track), 10 9/16″ (5 track)
- Sill height: 1 7/8”
- 90 degree and 135 degree corners
- 2” interlocks
- Tested water infiltration: 12 psf.
- Tested design load:
- DP: +/-65 psf.
- DP: +90/-102 psf.
- U-value: 0.57 on clear insulating laminated SB 70
- SHGC: 0.23 on clear insulating laminated SB 70
- Features
- Multiple panel configurations
- Removable sill riser painted to match the door
- Needle bearing acetal roller
- Standard contemporary handle & thumb turn
- 2 point locking hardware
- Multiple track options
- Pocket configuration
Prestige Impact Curtain Door

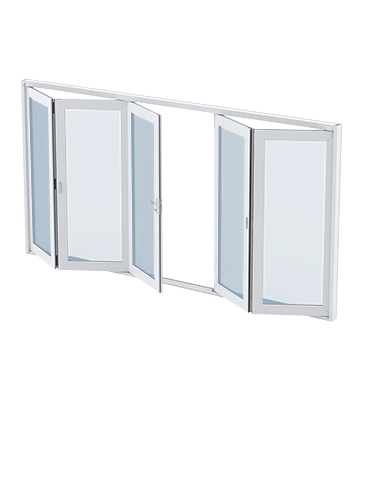

ES-BF5010T
The ES-BF5010T bifold door allows you to join two spaces effortlessly. The system provides a completely clear opening with a maximum of 120” in height.
Frame Colors Available
Glass Tint Colors Available
- System Description
- Multiple panel size: 42” width x 120” height
- Maximum 16 panels center meet
- Frame depth: 5”
- Threshold height: 2 1/2”
- Designed for insulating laminated glass and laminated glass
- 2” threshold for maximum water infiltration protection
- Tested water infiltration: 15 psf.
- Tested design load: +95/-95 psf.
- U-value: 0.77 on clear insulating laminated SB 70
- SHGC: 0.17 on clear insulating laminated SB 70
- Features
- Thermally broken frames
- ADA sill option
- BF5010T hinges and pull mechanism come in stainless steel
Prestige Impact Swing Door

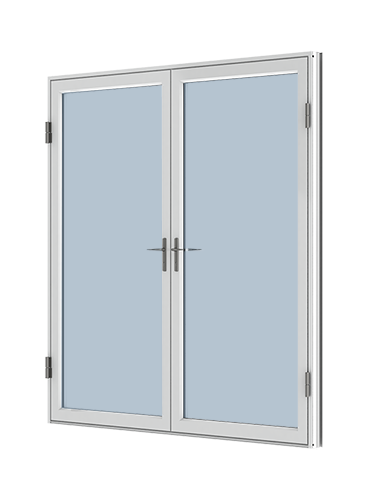

ES-46T
ES-46T is an out-swing door designed for balconies and open spaces. It pairs easy operation with a sophisticated modern look.
Frame Colors Available
Glass Tint Colors Available
- System Description
- Small and large missile impact rated
- Maximum size for single door:
- 41 3/16″ width x 108″ height
- 41 3/16″ width x 120″ height
- With transom: 41 3/16″ width x 134″ height
- Maximum size for double door:
- 80″ width x 98″ height
- 76 1/2″ width x 120″ height
- With transom: 80″ width x 134″ height
- With sidelites: 98″ width x 160″ height
- Frame depth: 4 1/2″
- Standard threshold height: 2 1/4″
- ADA threshold height: 1/2″
- Tested water infiltration: 15 psf.
- Tested design load: +100/-120 psf.
- U-value: 0.44 on clear insulating laminated SB 70
- SHGC: 0.21 on clear insulating laminated SB 70
- Features
- ADA threshold and high bottom rail optional
- Multi-point hardware
- Thermally broken frame
Impact Doors
Residential Impact Door Product Selection & Installation
Elite Swing Door
ES-EL300
The ES-EL300 is a 1 3/4” panel depth impact-rated french door available with integrated sidelites. This product is designed to meet the most stringent standards. ES-EL300 is a secure and durable door that can be used on a variety of applications, most commonly on residential condos.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Out-swing motion
- Frame depth: 4″
- Configurations: X, XX, O
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf
- Maximum size:
- X: 39 3/4″ width x 108″ height
- XX: 76″ width x 108″ height
- O/X/O: 131 1/4″ width x 108″ height
- U-value:
- 70 – IGU (3/16″ SB70 Clear + AS + 3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- 03 – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- Insulating laminated glass:
- 3/16″ + 3/8″ AS + 3/16″ + 0.090 Interlayer + 3/16″
- 1/4″ + 3/8″ AS + 1/8″ + 0.090 Interlayer + 3/16″
- Laminated glass:
- 3/16″ + 0.090 Interlayer + 3/16″
- 1/4″ + 0.090 Interlayer + 1/8″
- SHGC:
- 20 on clear insulating laminated SB 70
- Minimum width for accessibility is 72 13/16″ on a two panel door
- Door width: 38 3/16″
- Sill height: 1 1/2″
- ADA sizes: Conf. X 38 7/8″
- Wide variety of hardware options including three-point lock, heavy-duty hinges, lever handles, deadbolts, among others
- High bottom rail and high sill optional
- Self-mating sidelites
- OG muntins
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
Elite Sliding Glass Door
ES-EL400
The ES-EL400 is a sliding glass door with a 4 13/16″ frame profile. This product meets the most stringent specifications, and with its attractive design and one-to-four track frame, is ideal for a wide range of applications.
Frame Colors Available
Glass Tint Colors Available
- Large missile impact rated
- Frame depth: 4 13/16″
- Configurations: XO, OX, XX, OXO, XXX, OXXO, OXXX, XXXX, XOXXOX
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf
- Maximum panel size:
- 48″ width x 120″ height
- 60″ width x 96″ height
- U-value:
- 57 – IGU (3/16″ SB70 Clear + AS + 3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- 04 – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- Insulating laminated glass:
- 3/16″ + 3/8″ AS + 3/16″ + 0.090 Interlayer + 3/16″
- Laminated glass:
- 3/16″ + 0.090 Interlayer + 3/16″
- Egress size:
- Configurations for egress requirement available
- Minimum width for accessibility:
- OX/XO: 81 5/8″
- OXO: 123 3/16″
- OXXO: 93″
- SHGC:
- 23 on clear insulating laminated SB 70
- Minimum width for accessibility is 75 5/8″ on OX/XO configuration and 81 7/8″ on XX configuration
- Adjustable tandem polyamide needle bearing rollers
- Up to 4-track frame option
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
- Pocket configuration available
Multimax Swing Door
ES-MX3000
ES-MX3000 is an impact-rated french door designed with the highest technical standards in safety and durability. This door system can be used in a wide range of residential and commercial applications.
Frame Colors Available
Glass Tint Colors Available
- Maximum size:
- Single leaf: 40” width x 96” height
- Double leaf: 76” width x 96” height
- Frame depth: 4”
- Designed for 5/16” heat strengthened glass options
- Prepped handle bores options only
- Tested water infiltration: 13.5 psf. (single) 15 psf. (double)
- Tested design load: +80/-70 psf.
- Laminated glass:
- 1/8” HS + 0.09 PVB + 1/8” HS
- U-value: 1.04 on clear laminated SB 70
- SHGC: 0.23 on clear laminated SB 70
- Hurricane resistant
- Low-E Solarban 70 available
- White and bronze aluminum finishes
- PVB laminated glass with coating options available
Multimax Sliding Door
ES-MX4000
ES-MX4000 is an impact-rated sliding glass door system designed with the highest technical standards in safety and durability. This system is very versatile and can be implemented in interiors or exteriors for a wide range of residential and commercial projects.
Frame Colors Available
Glass Tint Colors Available
- Maximum panel size:
- 48” width x 108” height
- 48” width x 111” height (2 panel with reinforcements)
- Frame depth: 5 3/8”
- Sill height: 2 5/8”
- 2 track, and up to 4 panel configuration with screens
- Configurations: OX, XO, OXO, OXXO
- Tested water infiltration: 12 psf.
- Tested design load:
- +70/-80 psf.
- +80/-103 psf. (OX and XO only)
- Laminated glass:
- 3/16” HS + 0.09 PVB + 3/16” HS
- Hurricane resistant
- U-value: 1.02 on clear laminated SB 70
- SHGC: 0.30 on clear laminated SB 70
- Low-E Solarban 70 available
- Screen option available
- White and bronze aluminum finishes
- PVB laminated glass with coating options available
- Reinforcement available
Prestige Pivot/Entry Door
ES-PSD5030
Designed for captured glass, structural-silicone glazed , and multiple phenolic panel finish options.
Frame Colors Available
Glass Tint Colors Available
- System Description
- Pivot and swing door system
- Frame depth: 5″
- Maximum sizes:
- 60″ width x 144″ height
- 72″ width x 120″ height
- 90″ width x 96″ height
- Impact door
- ADA threshold
- Designed for multiple options of glass and phenolic panel
- Features
- Thermally broken system for improved performance and insulation
- Anodized, painted or wood grain finishes available
- Automatic drop-down seal to close any gap between the door and the floor/frame sill
- Damper control (soft close and wall protection)
- Hold positions at 0 ̊, 90 ̊and -90 ̊
- Modular multi-point lock with electric capability (optional)
- Multifunction die-cast aluminum corner joints
- Self-closing pivot hinge.
Prestige Pivot/Entry Door
ES-PSD5030T
The ES-PSD5030T is a versatile pivot and french/swing entry door system that allows multiple finish options. Designed for captured glass, ssg glass, and phenolic panel finish.
Frame Colors Available
Glass Tint Colors Available
- Pivot door system.
- Frame depth: 5″.
- Impact door.
- Trehshold ADA.
- Desing for multiple options of glass and panel phenolic.
- Thermal break system for improved performance and insulation.
- Multipoint lock.
- Available in multiple finishes, anodized, painted or with wood grain.
Prestige Impact Sliding Door
ES-SGD2020
The ES-SGD2020 is an impact-rated sliding glass door with minimal sightlines. This narrow door features less aluminum and more glass than others allowing a clearer view.
Frame Colors Available
Glass Tint Colors Available
- System Description
- Large missile impact rated
- Maximum panel size:
- 72” width x 120” height
- 60” width x 144” height
- Frame depth: 4 3/8” (2 track), 6 7/16” (3 track),
- 8 1/2” (4 track), 10 9/16″ (5 track)
- Sill height: 1 7/8”
- 90 degree and 135 degree corners
- 2” interlocks
- Tested water infiltration: 12 psf.
- Tested design load:
- DP: +/-65 psf.
- DP: +90/-102 psf.
- U-value: 0.57 on clear insulating laminated SB 70
- SHGC: 0.23 on clear insulating laminated SB 70
- Features
- Multiple panel configurations
- Removable sill riser painted to match the door
- Needle bearing acetal roller
- Standard contemporary handle & thumb turn
- 2 point locking hardware
- Multiple track options
- Pocket configuration
Prestige Impact Curtain Door
ES-BF5010T
The ES-BF5010T bifold door allows you to join two spaces effortlessly. The system provides a completely clear opening with a maximum of 120” in height.
Frame Colors Available
Glass Tint Colors Available
- System Description
- Multiple panel size: 42” width x 120” height
- Maximum 16 panels center meet
- Frame depth: 5”
- Threshold height: 2 1/2”
- Designed for insulating laminated glass and laminated glass
- 2” threshold for maximum water infiltration protection
- Tested water infiltration: 15 psf.
- Tested design load: +95/-95 psf.
- U-value: 0.77 on clear insulating laminated SB 70
- SHGC: 0.17 on clear insulating laminated SB 70
- Features
- Thermally broken frames
- ADA sill option
- BF5010T hinges and pull mechanism come in stainless steel
Prestige Impact Swing Door
ES-46T
ES-46T is an out-swing door designed for balconies and open spaces. It pairs easy operation with a sophisticated modern look.
Frame Colors Available
Glass Tint Colors Available
- System Description
- Small and large missile impact rated
- Maximum size for single door:
- 41 3/16″ width x 108″ height
- 41 3/16″ width x 120″ height
- With transom: 41 3/16″ width x 134″ height
- Maximum size for double door:
- 80″ width x 98″ height
- 76 1/2″ width x 120″ height
- With transom: 80″ width x 134″ height
- With sidelites: 98″ width x 160″ height
- Frame depth: 4 1/2″
- Standard threshold height: 2 1/4″
- ADA threshold height: 1/2″
- Tested water infiltration: 15 psf.
- Tested design load: +100/-120 psf.
- U-value: 0.44 on clear insulating laminated SB 70
- SHGC: 0.21 on clear insulating laminated SB 70
- Features
- ADA threshold and high bottom rail optional
- Multi-point hardware
- Thermally broken frame
Impact Windows & Doors
FINANCING & GRANT INFORMATION AVAILABLE FOR THOSE INTERESTED
Arcia Impact Windows & Doors is approved to offer a wide range of financing options. Reach out to us to find out what options you may have to finance your project.
Impact DOORS Photo Gallery

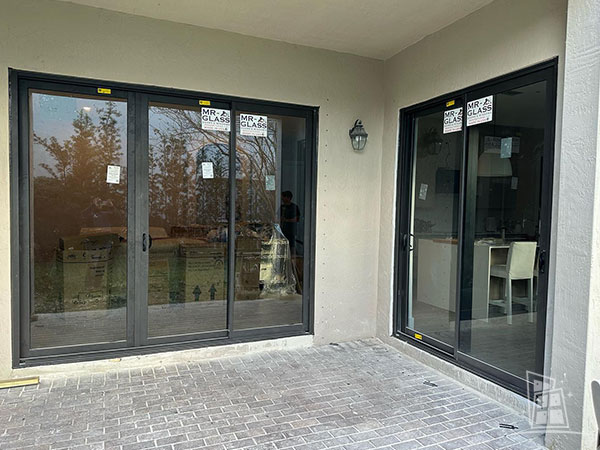

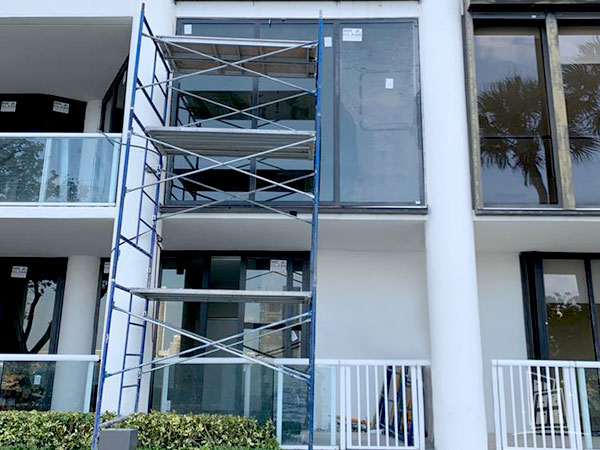

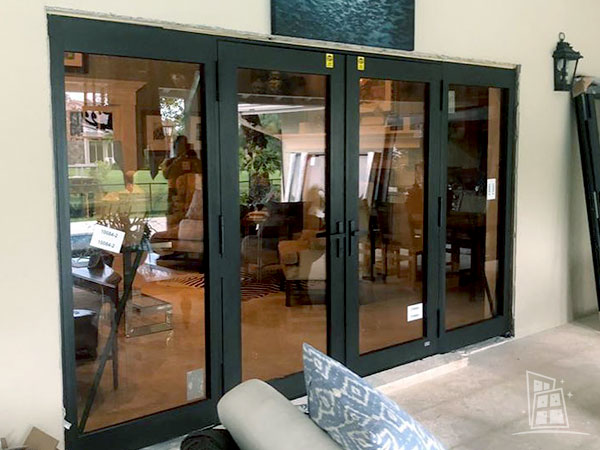

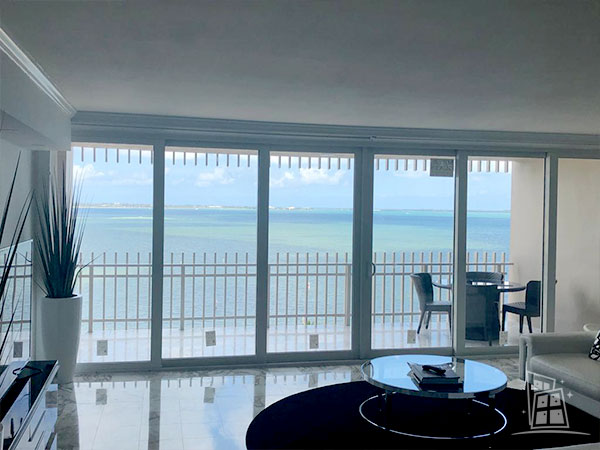

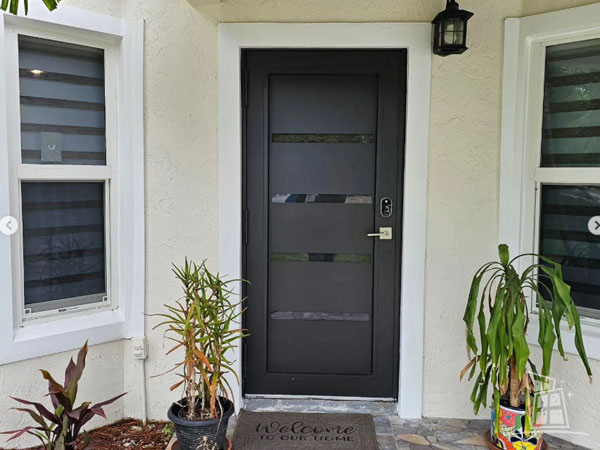

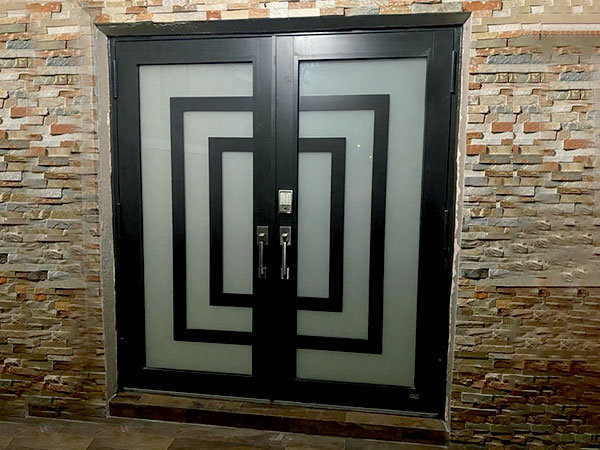

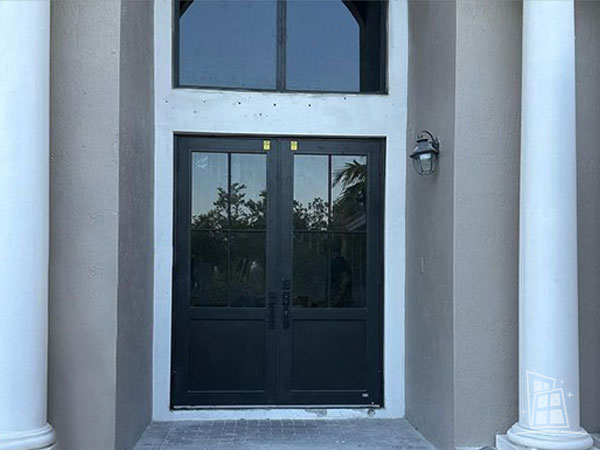

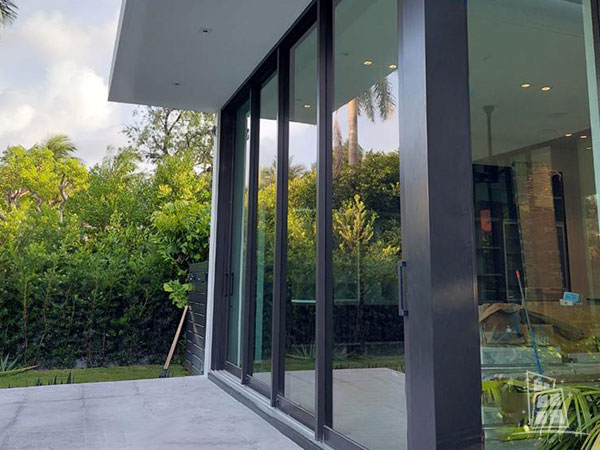

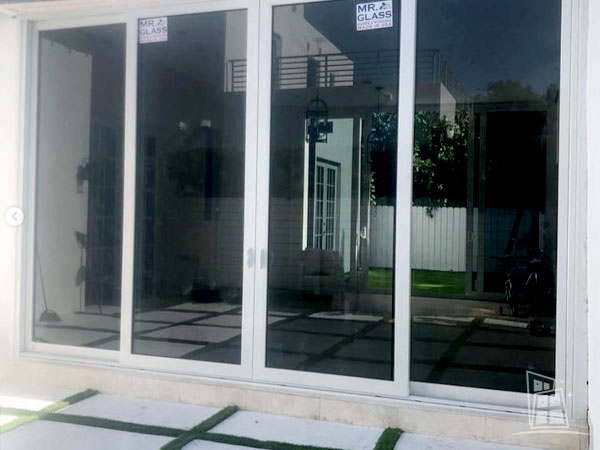

Residential Impact Door Installation Examples
TRYING TO DECIDE IF OUR COMPANY IS RIGHT FOR YOU?
Benefits of using Arcia Impact Windows & Doors
As industry leaders, Arcia Windows & Doors Inc. provides impact windows to Miami-Dade, Broward, Martin County, Monroe, Palm Beach and many other counties in the South Florida area (view complete list of locations we service here).
Our brand has been recognized for having a phenomenal track record with all our residential and business clients alike. We offer financing and home improvement grant options for those that need it, through our various industry partners and knowledge of available state programs. We have options available for every project type. Contact us today to get started!
Have Questions?
We have compiled a list of questions and answers to common questions.
Yes, permit applications must be submitted with the association first and then with the city the property is located in.
Arcia Impact Windows & Doors uses Zipwall to prep all work areas so that the structure and area is secure before we start. This allows for more control of dust and debris making it safer for you and your family.
Arcia Impact Windows & Doors provides 1-year warrantee with all of their installations and our impact doors all carry manufacturers warrantee. For information on each brand please contact us at (786) 599-1006 or email us at info@arciawindows.com.
Door installations times vary depending property structure, product availability, and the number of doors being installed. Generally, a door installation can range anywhere from one to several days depending on project size.
Yes, however, we highly recommend having the product installed through one of our professional contractors in order to avoid accidently damaging the product and voiding the warrantee
The main difference between a regular door and an impact door is that an impact door is suited and tested for wind mitigation for up to 175 mile per hour winds and has more impact resistance against flying objects.
Yes, impact doors can significantly increase a home’s value because they offer a higher level of security and wind protection.
Yes, impact doors help reduce heat which in turn helps with energy consumption. For more information on which door is right for you, contact us at (786) 599-1006 or email us at info@arciawindows.com.
Yes, there are various insurance companies that offer discounts on your premium for impact doors because they help protect your home against storms, brake-ins, high winds and flying debris. For more information on the amount reduction, we recommend talking to your insurance provider.
