ES9000

Commercial Impact Door

TYPE           All
BRAND     Prestige®
ES-9000 Entry Door is an impact rated door functional as both outswing and inswing. Its profiles allow maximum sizes with modern lines that make it ideal for entrances.
Prestige Brochure
Arcia Door Designs Brochure
  • Impact door system
  • Maximum size for single door: 53” width x 120” height
  • Maximum size for double door: 101” width x 120” height
  • Available at 144” height with transoms
  • Frame depth: 5″
  • Sight line: 1 3/4” or 2 1/2”
  • Designed for 9/16” laminated and 1 1/16” insulated-laminated glass
  • Tested water infiltration: 18 psf.
  • Tested design load: +120/-120 psf.
  • U-value: 0.74 on insulating laminated SB 70
  • SHGC: 0.18 on insulating laminated SB 70
  • Blast Resistant Blast Resistant
  • Hurricane Resistant Hurricane Resistant
  • Pre-assembled door leaf.
  • Stainless steel hardware.
  • High and ADA thresholds.
  • Corners are reinforced with welded aluminum brackets.
REQUEST A QUOTE

ES9000/9100

Commercial Impact Door

TYPE           All
BRAND     Prestige®
The ES-9000 and ES-9100 are 2 1/4” thick impact rated entrance doors ideal for high traffic areas such as office and commercial buildings, due to their durability and high security standards. The ES-9000 and ES-9100 are compatible with the ES-8000 and the ES-9500 storefront systems.
Prestige Brochure
Arcia Door Designs Brochure
  • Frame depth: 5”.
  • Sightline frame: 13/4” or 2 1/2”.
  • Outswing motion.
  • Available with butt hinges or offset pivots.
  • Designed for 9/16” laminated and 1 1/16” insulating laminated glass.
  • Maximum size: 47” x 110 1/2” X; 89” x 110 ½” XX; 53” x 120” SMI X.
  • Variety of accessories including three point lock, concealed vertical rod exit devices, overhead concealed closer, push-pull handle, etc.
  • Blast Resistant Blast Resistant
  • Hurricane Resistant Hurricane Resistant
  • High and ADA thresholds.
  • Corners are reinforced with welded aluminum brackets.
  • Pre-assembled door leaf.
  • Fully weather-stripped.
  • Stainless steel hardware.
  • Anodized, painted or wood grain finishes available.
REQUEST A QUOTE

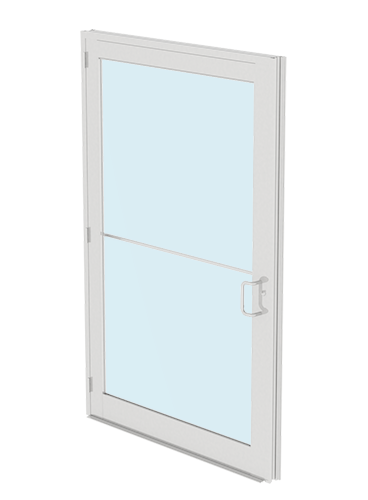

ES50

Commercial Impact Door

TYPE           All
BRAND     ESW ®
The ES-21, ES-35 and ES-50 are 2 1/8”, 3 1/2” and 5” narrow, medium and wide stile swing doors, accordingly. They are compatible with the ES-4520 storefront. These doors are ideal for interior or exterior areas, providing an exclusive architectural design.
Arcia Door Designs Brochure
  • Single or double acting operation.
  • Narrow stile: 2 1/8” wide.
  • Medium stile: 3 1/2” wide.
  • Wide stile: 5”.
  • Leaf depth: 1 3/4”.
  • Frame depth: 4 1/2”.
  • Sightline frame: 2”.
  • Designed for 1/4” monolithic and 1” insulating glass.
  • Maximum size: 42” x 96” (X); 84” x 96” (XX).
  • Design load: +50/-50 psf ES-21X; +30/-30 psf ES-21XX; +70/-70 psf ES-35X; +50/-50 psf ES-35XX; +50/-50 psf ES-50X; +30/-30 -psf ES-50XX SMI and LMI.
  • U-value: ES-21: 0.61; ES-35: 0.69; ES-50: –0.74.
  • Pre-assembled and pre-glazed.
  • Available with butt hinges.
  • ADA threshold.
  • Anodized, painted or wood grain finishes available.
  • Corners are reinforced with welded aluminum brackets.
  • Variety of accessories, including three point lock, concealed vertical rod exit devices, overhead concealed closer, push- pull handle, etc.
REQUEST A QUOTE

ES35

Commercial Impact Door

TYPE           All
BRAND     ESW ®
The ES-21, ES-35 and ES-50 are 2 1/8”, 3 1/2” and 5” narrow, medium and wide stile swing doors, accordingly. They are compatible with the ES-4520 storefront. These doors are ideal for interior or exterior areas, providing an exclusive architectural design.
Arcia Door Designs Brochure
  • Single or double acting operation.
  • Narrow stile: 2 1/8” wide.
  • Medium stile: 3 1/2” wide.
  • Wide stile: 5”.
  • Leaf depth: 1 3/4”.
  • Frame depth: 4 1/2”.
  • Sightline frame: 2”.
  • Designed for 1/4” monolithic and 1” insulating glass.
  • Maximum size: 42” x 96” (X); 84” x 96” (XX).
  • Design load: +50/-50 psf ES-21X; +30/-30 psf ES-21XX; +70/-70 psf ES-35X; +50/-50 psf ES-35XX; +50/-50 psf ES-50X; +30/-30 -psf ES-50XX SMI and LMI.
  • U-value: ES-21: 0.61; ES-35: 0.69; ES-50: –0.74.
  • Pre-assembled and pre-glazed.
  • Available with butt hinges.
  • ADA threshold.
  • Anodized, painted or wood grain finishes available.
  • Corners are reinforced with welded aluminum brackets.
  • Variety of accessories, including three point lock, concealed vertical rod exit devices, overhead concealed closer, push- pull handle, etc.
REQUEST A QUOTE

ES21

Commercial Impact Door

TYPE           All
BRAND     ESW ®
The ES-21, ES-35 and ES-50 are 2 1/8”, 3 1/2” and 5” narrow, medium and wide stile swing doors, accordingly. They are compatible with the ES-4520 storefront. These doors are ideal for interior or exterior areas, providing an exclusive architectural design.
Arcia Door Designs Brochure
  • Single or double acting operation.
  • Narrow stile: 2 1/8” wide.
  • Medium stile: 3 1/2” wide.
  • Wide stile: 5”.
  • Leaf depth: 1 3/4”.
  • Frame depth: 4 1/2”.
  • Sightline frame: 2”.
  • Designed for 1/4” monolithic and 1” insulating glass.
  • Maximum size: 42” x 96” (X); 84” x 96” (XX).
  • Design load: +50/-50 psf ES-21X; +30/-30 psf ES-21XX; +70/-70 psf ES-35X; +50/-50 psf ES-35XX; +50/-50 psf ES-50X; +30/-30 -psf ES-50XX SMI and LMI.
  • U-value: ES-21: 0.61; ES-35: 0.69; ES-50: –0.74.
  • Pre-assembled and pre-glazed.
  • Available with butt hinges.
  • ADA threshold.
  • Anodized, painted or wood grain finishes available.
  • Corners are reinforced with welded aluminum brackets.
  • Variety of accessories, including three point lock, concealed vertical rod exit devices, overhead concealed closer, push- pull handle, etc.
REQUEST A QUOTE

Commercial Doors

Commercial Door Product Selection & Installation

ES9000

Commercial Impact Door

TYPE           All
BRAND     Prestige®
ES-9000 Entry Door is an impact rated door functional as both outswing and inswing. Its profiles allow maximum sizes with modern lines that make it ideal for entrances.
Prestige Brochure
Arcia Door Designs Brochure
  • Impact door system
  • Maximum size for single door: 53” width x 120” height
  • Maximum size for double door: 101” width x 120” height
  • Available at 144” height with transoms
  • Frame depth: 5″
  • Sight line: 1 3/4” or 2 1/2”
  • Designed for 9/16” laminated and 1 1/16” insulated-laminated glass
  • Tested water infiltration: 18 psf.
  • Tested design load: +120/-120 psf.
  • U-value: 0.74 on insulating laminated SB 70
  • SHGC: 0.18 on insulating laminated SB 70
  • Blast Resistant Blast Resistant
  • Hurricane Resistant Hurricane Resistant
  • Pre-assembled door leaf.
  • Stainless steel hardware.
  • High and ADA thresholds.
  • Corners are reinforced with welded aluminum brackets.
REQUEST A QUOTE

ES9000/9100

Commercial Impact Door

TYPE           All
BRAND     Prestige®
The ES-9000 and ES-9100 are 2 1/4” thick impact rated entrance doors ideal for high traffic areas such as office and commercial buildings, due to their durability and high security standards. The ES-9000 and ES-9100 are compatible with the ES-8000 and the ES-9500 storefront systems.
Prestige Brochure
Arcia Door Designs Brochure
  • Frame depth: 5”.
  • Sightline frame: 13/4” or 2 1/2”.
  • Outswing motion.
  • Available with butt hinges or offset pivots.
  • Designed for 9/16” laminated and 1 1/16” insulating laminated glass.
  • Maximum size: 47” x 110 1/2” X; 89” x 110 ½” XX; 53” x 120” SMI X.
  • Variety of accessories including three point lock, concealed vertical rod exit devices, overhead concealed closer, push-pull handle, etc.
  • Blast Resistant Blast Resistant
  • Hurricane Resistant Hurricane Resistant
  • High and ADA thresholds.
  • Corners are reinforced with welded aluminum brackets.
  • Pre-assembled door leaf.
  • Fully weather-stripped.
  • Stainless steel hardware.
  • Anodized, painted or wood grain finishes available.
REQUEST A QUOTE

ES50

Commercial Impact Door

TYPE           All
BRAND     ESW ®
The ES-21, ES-35 and ES-50 are 2 1/8”, 3 1/2” and 5” narrow, medium and wide stile swing doors, accordingly. They are compatible with the ES-4520 storefront. These doors are ideal for interior or exterior areas, providing an exclusive architectural design.
Arcia Door Designs Brochure
  • Single or double acting operation.
  • Narrow stile: 2 1/8” wide.
  • Medium stile: 3 1/2” wide.
  • Wide stile: 5”.
  • Leaf depth: 1 3/4”.
  • Frame depth: 4 1/2”.
  • Sightline frame: 2”.
  • Designed for 1/4” monolithic and 1” insulating glass.
  • Maximum size: 42” x 96” (X); 84” x 96” (XX).
  • Design load: +50/-50 psf ES-21X; +30/-30 psf ES-21XX; +70/-70 psf ES-35X; +50/-50 psf ES-35XX; +50/-50 psf ES-50X; +30/-30 -psf ES-50XX SMI and LMI.
  • U-value: ES-21: 0.61; ES-35: 0.69; ES-50: –0.74.
  • Pre-assembled and pre-glazed.
  • Available with butt hinges.
  • ADA threshold.
  • Anodized, painted or wood grain finishes available.
  • Corners are reinforced with welded aluminum brackets.
  • Variety of accessories, including three point lock, concealed vertical rod exit devices, overhead concealed closer, push- pull handle, etc.
REQUEST A QUOTE

ES35

Commercial Impact Door

TYPE           All
BRAND     ESW ®
The ES-21, ES-35 and ES-50 are 2 1/8”, 3 1/2” and 5” narrow, medium and wide stile swing doors, accordingly. They are compatible with the ES-4520 storefront. These doors are ideal for interior or exterior areas, providing an exclusive architectural design.
Arcia Door Designs Brochure
  • Single or double acting operation.
  • Narrow stile: 2 1/8” wide.
  • Medium stile: 3 1/2” wide.
  • Wide stile: 5”.
  • Leaf depth: 1 3/4”.
  • Frame depth: 4 1/2”.
  • Sightline frame: 2”.
  • Designed for 1/4” monolithic and 1” insulating glass.
  • Maximum size: 42” x 96” (X); 84” x 96” (XX).
  • Design load: +50/-50 psf ES-21X; +30/-30 psf ES-21XX; +70/-70 psf ES-35X; +50/-50 psf ES-35XX; +50/-50 psf ES-50X; +30/-30 -psf ES-50XX SMI and LMI.
  • U-value: ES-21: 0.61; ES-35: 0.69; ES-50: –0.74.
  • Pre-assembled and pre-glazed.
  • Available with butt hinges.
  • ADA threshold.
  • Anodized, painted or wood grain finishes available.
  • Corners are reinforced with welded aluminum brackets.
  • Variety of accessories, including three point lock, concealed vertical rod exit devices, overhead concealed closer, push- pull handle, etc.
REQUEST A QUOTE

ES21

Commercial Impact Door

TYPE           All
BRAND     ESW ®
The ES-21, ES-35 and ES-50 are 2 1/8”, 3 1/2” and 5” narrow, medium and wide stile swing doors, accordingly. They are compatible with the ES-4520 storefront. These doors are ideal for interior or exterior areas, providing an exclusive architectural design.
Arcia Door Designs Brochure
  • Single or double acting operation.
  • Narrow stile: 2 1/8” wide.
  • Medium stile: 3 1/2” wide.
  • Wide stile: 5”.
  • Leaf depth: 1 3/4”.
  • Frame depth: 4 1/2”.
  • Sightline frame: 2”.
  • Designed for 1/4” monolithic and 1” insulating glass.
  • Maximum size: 42” x 96” (X); 84” x 96” (XX).
  • Design load: +50/-50 psf ES-21X; +30/-30 psf ES-21XX; +70/-70 psf ES-35X; +50/-50 psf ES-35XX; +50/-50 psf ES-50X; +30/-30 -psf ES-50XX SMI and LMI.
  • U-value: ES-21: 0.61; ES-35: 0.69; ES-50: –0.74.
  • Pre-assembled and pre-glazed.
  • Available with butt hinges.
  • ADA threshold.
  • Anodized, painted or wood grain finishes available.
  • Corners are reinforced with welded aluminum brackets.
  • Variety of accessories, including three point lock, concealed vertical rod exit devices, overhead concealed closer, push- pull handle, etc.
REQUEST A QUOTE
ESW - Glass Manufacturer
Mr Glass - Glass Manufacturer
Sunshine Windows - Glass Manufacturer

Impact Windows & Doors

FINANCING & GRANT INFORMATION AVAILABLE FOR THOSE INTERESTED

Call: (786) 599-1006

Arcia Impact Windows & Doors is approved to offer a wide range of financing options. Reach out to us to find out what options you may have to finance your project.

Contact Form

COMMERCIAL DOOR PHOTO GALLERY

Commercial Door Installation Examples

Commercial doors and glass storefront installations
Commercial doors and glass storefront installations

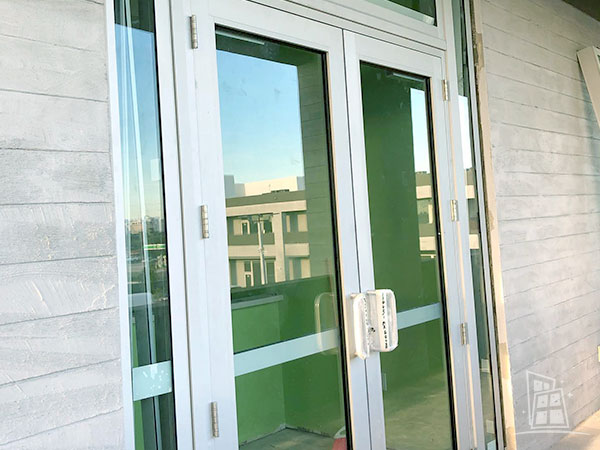

Commercial impact door
Commercial impact door

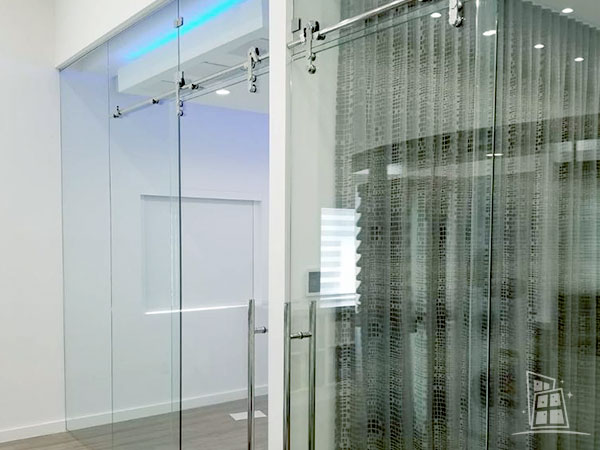

Office Building Glass Door
Commercial Office Glass Door
TRYING TO DECIDE IF OUR COMPANY IS RIGHT FOR YOU?

Benefits of using Arcia Impact Windows & Doors

As industry leaders, Arcia Windows & Doors Inc. provides glass storefront and commercial glass door installations to Miami-Dade, Broward, Martin County, Monroe, Palm Beach and many other counties in the South Florida area (view complete list of locations we service here).
Our brand has been recognized for having a phenomenal track record with all our residential and business clients alike. We offer financing and home improvement grant options for those that need it, through our various industry partners and knowledge of available state programs. We have options available for every project type. Contact us today to get started!

Call (786) 599-1006

Have Questions?

We have compiled a list of questions and answers to common questions.

Commercial doors size requirements vary but we recommend a minimum of 36 inches wide in accordance with ADA guidelines in the state of Florida.

Arcia Impact Windows & Doors provides 1-year warrantee with all of their installations and our commercial doors all carry manufacturers warrantee. For information on each brand please contact us at (786) 599-1006 or email us at info@arciawindows.com.

Yes, commercial doors and frames are all thicker than residential doors and frames.

Commercial door sizes vary, but we recommend a minimum clearing of 32in. by 80in.

A commercial door is a door that is designed and manufactured to meet the needs of a commercial business. They are often used in shopping malls and stores, gas stations, office buildings, hospitals, warehouses, and other commercial buildings.

Unlike residential doors, commercial doors are designed and tested to sustain greater impacts and wear and tear over time. They generally also offer more security than residential doors.
